ESDALC6V1P5

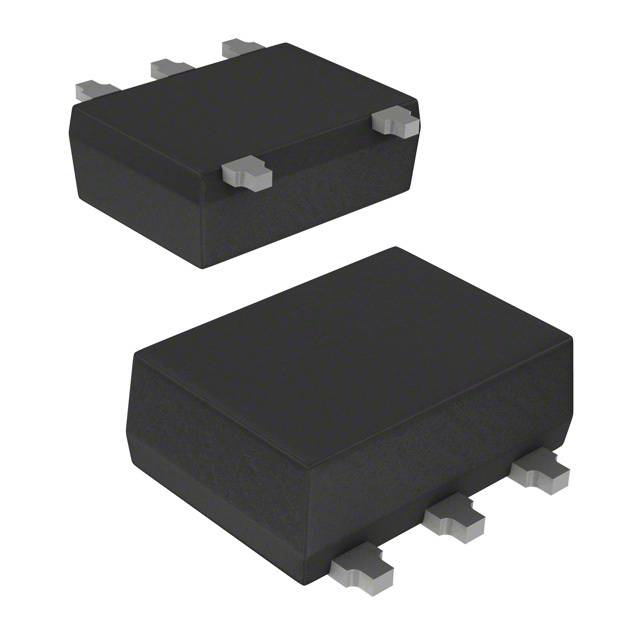

DIODE, TVS; Diode Type:TVS; Voltage, Stand-off:3V; Voltage, Vbr:7.2V; Power, Peak Pulse:30W; Typ Capacitance Cd @ Vr:7.5pF; Termination Type:SMD; Operating Temperature Range:-40°C to +150°C; Case Style:SOT-665; No. of Pins:5
Availability: In Stock
Package Type: SOT-665
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ESDALC6V1P5 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ESDALC6V1P5
| Part Name | ESDALC6V1P5 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 3 (V) |
| Dimensions | 1.7 x 0.62 x 1.3 (mm) |
| Mounting Type | Surface Mount |
| Maximum Zener Impedance | 1.5 (Ω) |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current (A) | 100 (nA) |
| Zener Type | Uni-Directional |
| Number Of Elements Per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Package Type | SOT-666 |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 5 |
